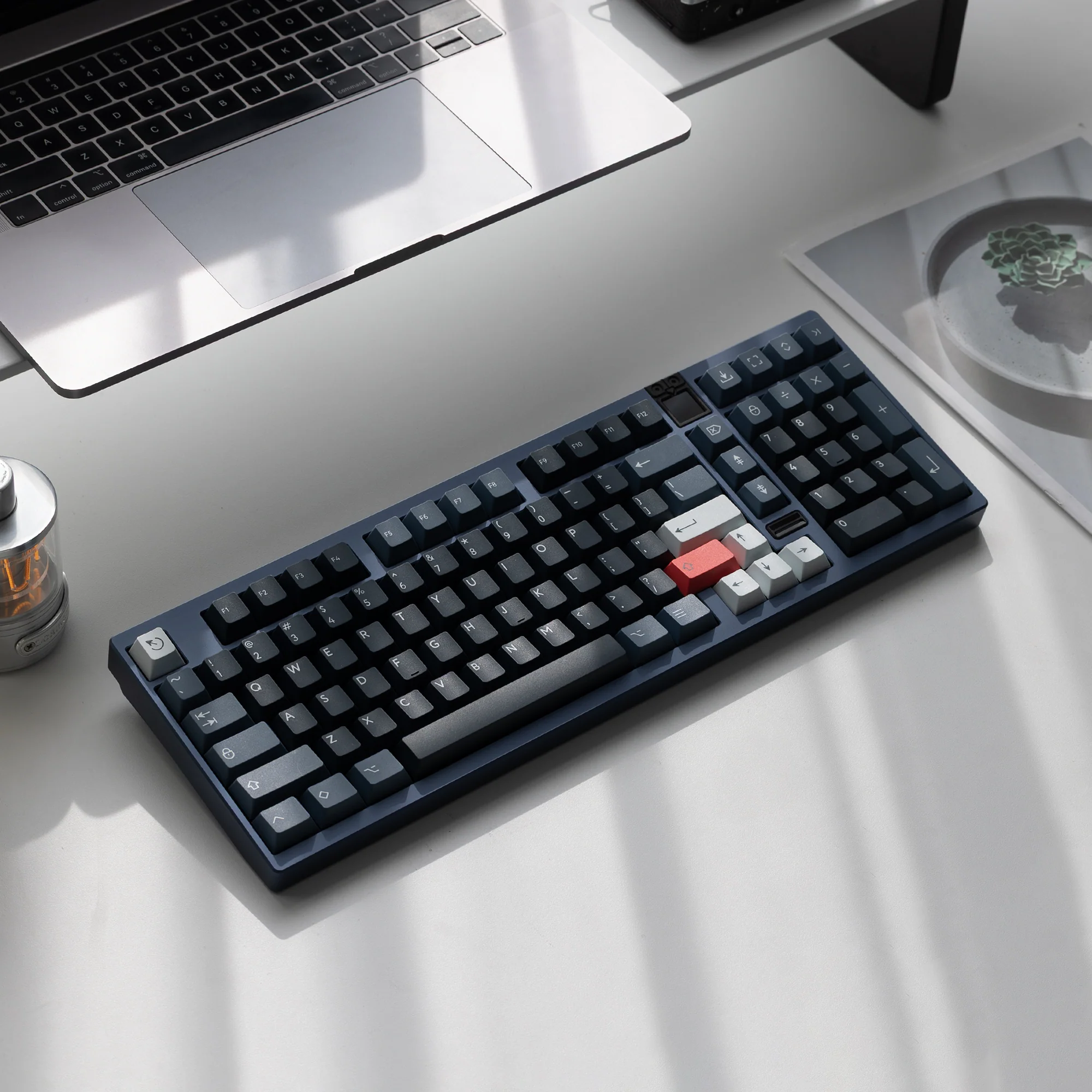

Ready to use Athena 1800 with PBTfans Spark R3

✨ New Arrivals Just Dropped!Explore

Engineered for a Divine Typing Experience

Beneath its striking exterior, the Athena 1800 is built with the discerning enthusiast in mind, offering a choice of premium typing experiences.

Top Mount
For a classic, firm, and direct typing feel with consistent feedback. Favored by those who appreciate a traditional, responsive typing experience and sound.

PCB Silicone Gasket
Delivering a softer, more cushioned, and acoustically refined typing sensation. This mount isolates the PCB, providing a gentler bottom-out and a more muted, thocky sound profile.

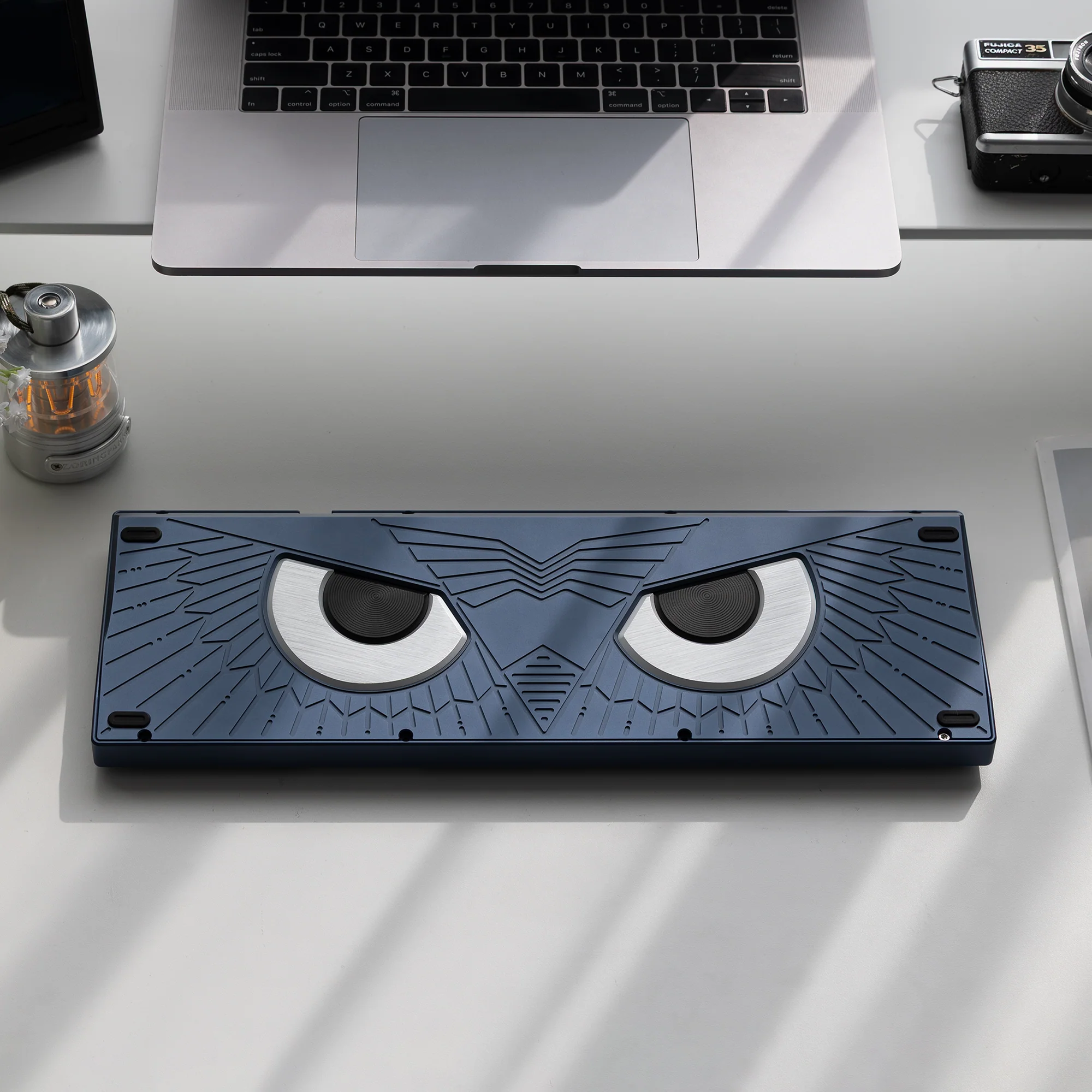

Internal Cover plate and rectangular Weight bar

Cover plate material options: Stainless Steel / Brass / Carbon Fiber

Internal Design: Each version comes standard with a stainless steel internal weight bar.
This design not only provides a substantial, premium typing feel but also offers a diverse range of unique acoustic profiles.

The stainless steel version, in particular, features exquisite \"toolpath\" engravings—a finely machined texture on its interior.
This hidden detail is a testament to a meticulous commitment to quality and a unified aesthetic throughout the entire build.

Exploded View

Layout

Specs：

Case material: Aluminum (anodized/e-coating)
Mounting style: Top Mount/PCB Silicone Gasket
PCB: 1.6mm solder/ hotswap PCB, non flex-cut, USB-C interface, VIAL supported, includes Caps Lock key/Scroll Lock key RGB LCD indicator
Plate: Alu/FR4/PC/ Carbon fiber Plate
Typing angle: 9 degree
Cover plate material options: Stainless Steel / Brass / Carbon Fiber
\nWeight after built：
≈2.5kg with Carbon Fiber cover plate
≈3kg with Stainless Steel cover plate\n
Designer: Wei
Plate file

Firmware：

Flash manualydkb_kbdfans_athena1800_via_v3.json (updated on 08/22/2025)
kbdfans_athena1800_vial_250822_DP8M_1.uf2 (updated on 08/22/2025)
Flash manual

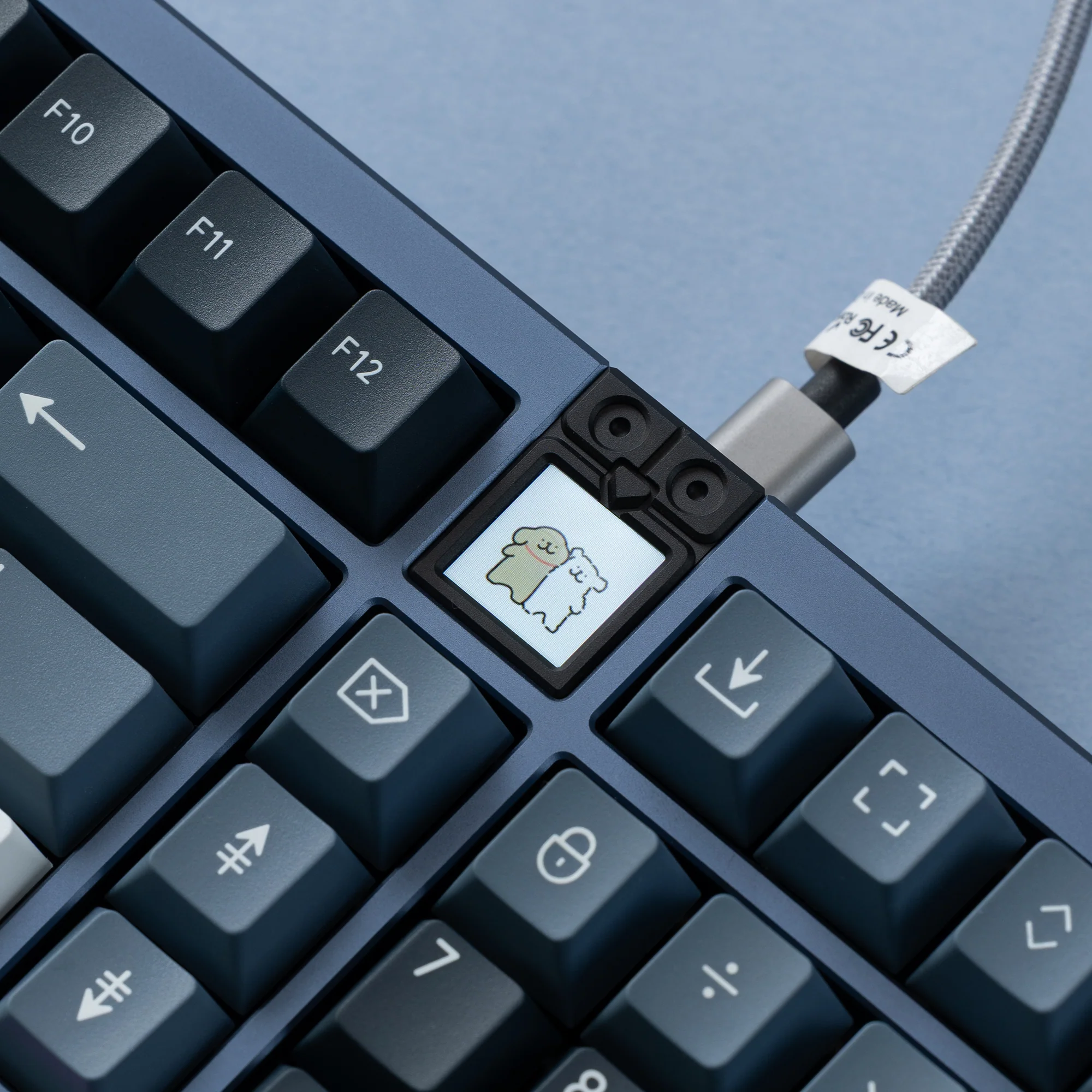

\nAthena 1800 GIF Customization Guid: for custom GIFs, you can convert your image or animation into the .uf2 format on this web: GIF to UF2 for Athena1800
It only supports 128x128 pixel GIFs.
For GIFs used for \"Typing\" and \"CapsLock\" (presumably referring to keyboard indicators), the frame count should be less than 31 frames.
For other GIFs, the frame count should be less than 63 frames.\n

What's included:

Top and bottom case x1
Stainless steel weight bar x1
Silicone gasket x1 set
Rubber feet x1 set
Solder / hotswap PCB x1
Daughterboard x1
Cover plate x1
Foam kit x1
Plate x1
LCD screen x1
Bezel x1
RGB grille x1
Aluminum pupil x1 set
Aluminum iris x1 set
Screws x1 set
Force break tape x1 set

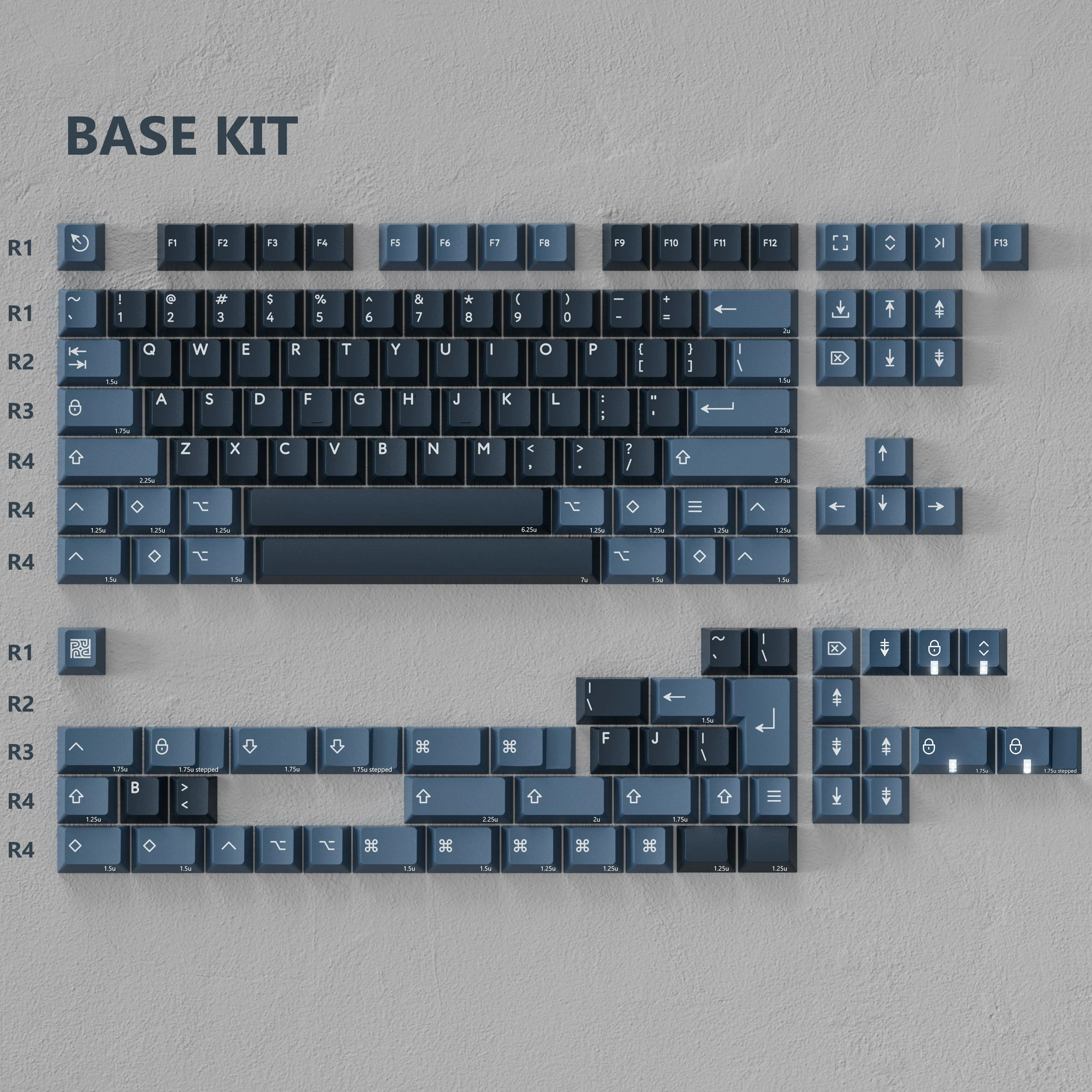

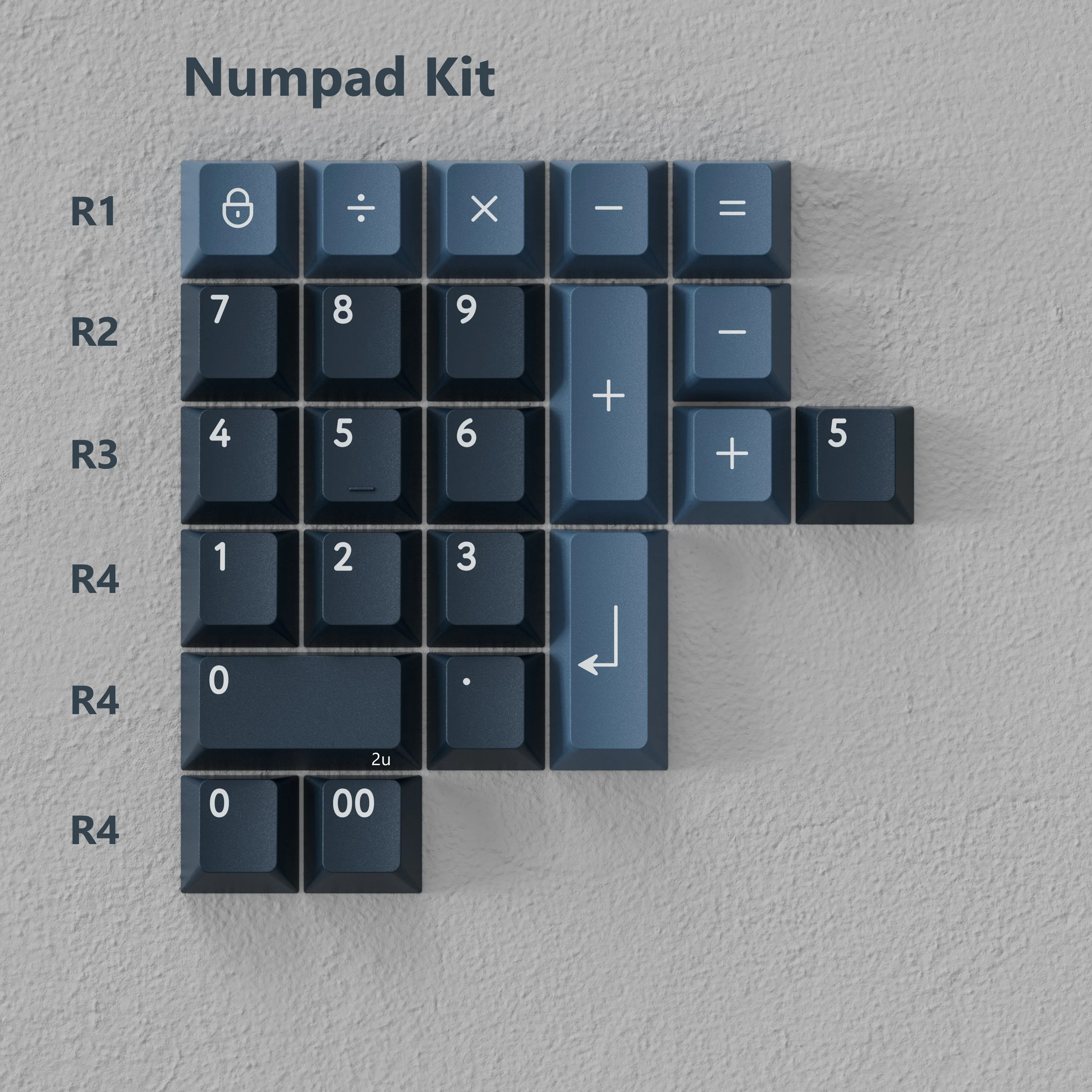

PBTfans Spark R3 Base kit（PT72-1）Numpad（PT50-3）

Update：

Pre-order will ship around October 2025 (08/26/2025)

Dimensions

Pictures

Click here for more about Athena 1800
